About This

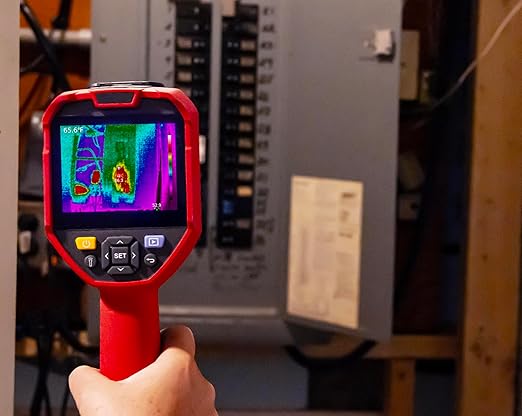

• Preventative Maintenance and Troubleshooting: Hot and cold temperature markers quickly indicate where potential issues are located with Infrared, Visible Light, Picture in Picture, and Fusion Display modes
• Infrared Mode: 320 x 240 pixels (76,800) thermal detector with ≤65mk Thermal Sensitivity (NETD) that displays 5 manual spots, 3 rectangles, 3 circles, 1 line analyze, and auto hot/cold temperature markers
• Fusion Display Mode: Manual fusion (0 to 100%) controls the mix ratio between the infrared and visible image

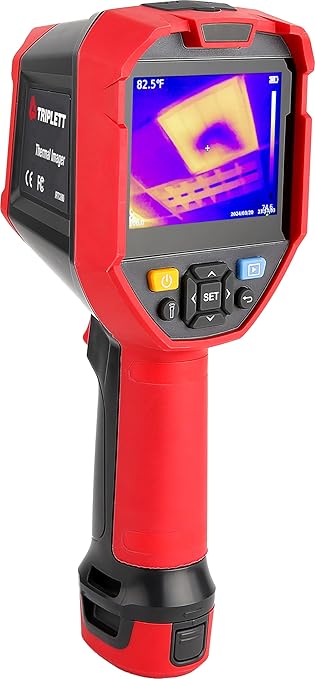

• On Screen Picture Gallery: 3.5" (89mm) focus-free, color touchscreen display with 640 x 480 resolution
• Export Data: USB interface for transferring images (.jpg) or live stream viewing on your PC

Overview

• Brand : Triplett
• Color : Red

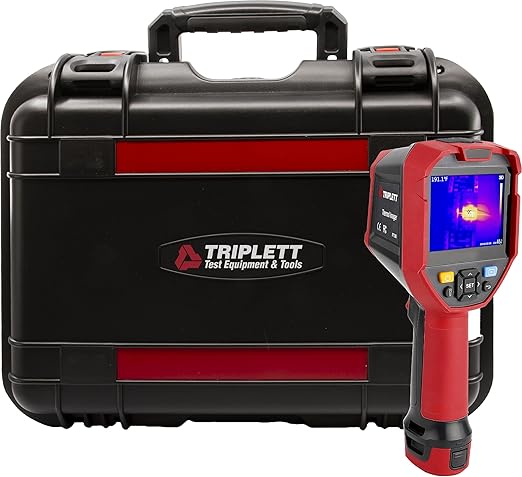

• Included Components : Rechargeable Lithium Ion Battery, SD Card, USB Cable
• Specification Met : Ul 61010-1, Ce Marked
• Power Source : Battery Powered
• Number of Batteries : 1 Lithium Ion batteries required. (included)
• Upper Temperature Rating : 400 Degrees Celsius
• Style : IRTC800
• UPC : 614395005368
• Manufacturer : Triplett Test Equipment and Tools
